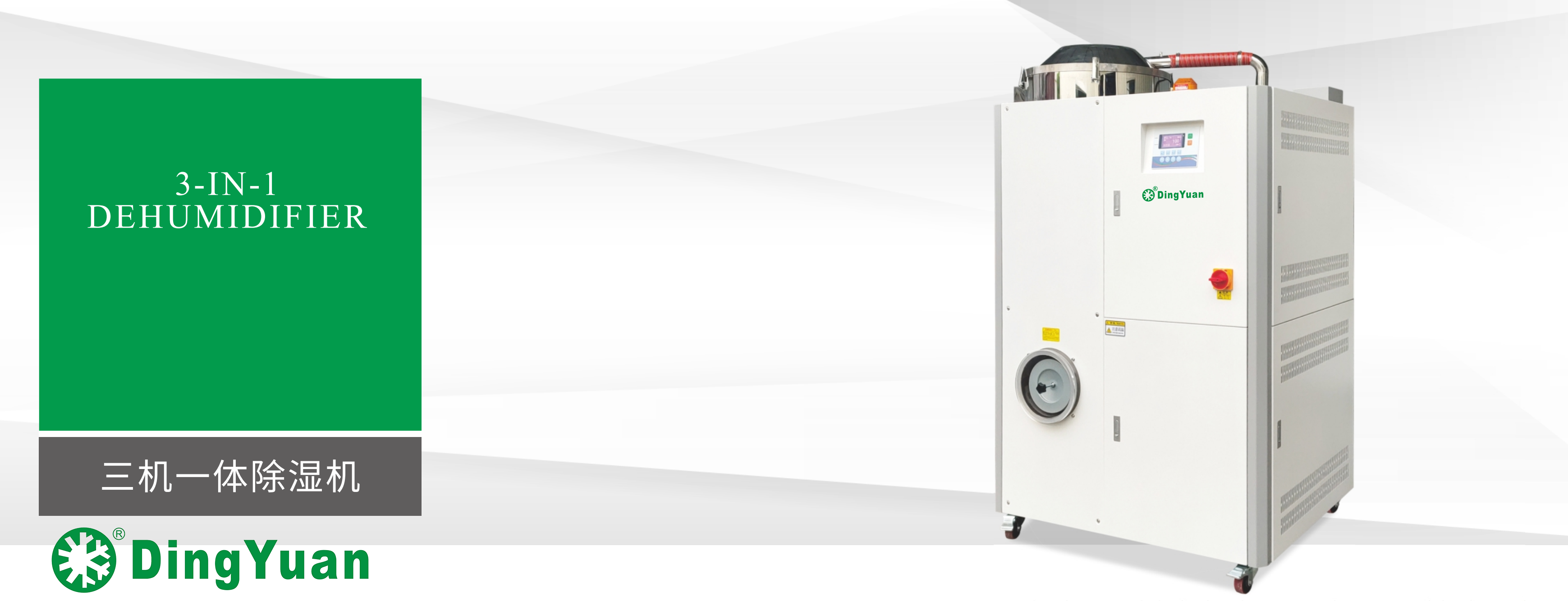

Three-In-One Dehumidifier

In the molding process of hygroscopic resin, drying becomes an especially critical stage, and it is necessary to ensure that the moisture in the raw materials is removed and that the drying temperature is appropriate. Dingyuan's rotary dehumidifiers can provide air with continuously stable humidity and temperature, ensuring production efficiency and quality. The TDH series 'three-in-one' dehumidifier combines drying, dehumidifying, and two-stage conveying functions in a single unit. It features a closed-loop feeding system and uses stainless steel materials (double-layered) to improve drying efficiency. Dingyuan's industrial dehumidifiers are easy to operate, reasonably designed, high-quality, and available in hundreds of specifications, making them an indispensable companion in modern industrial production.
Model:
Quantity:

Product Description


Scope of Application:

The integrated three-in-one dehumidifying dryer is widely used for various plastic raw materials, especially highly hygroscopic engineering plastics such as PA, PC, PBT, PET, etc. It offers configurations for two-stage feeding (corresponding to one injection molding machine) or three-stage feeding (corresponding to two injection molding machines) according to production requirements.


Characteristics

· Efficient rotary wheel system: Uses DingYuan honeycomb rotary wheel design, offering both semi-open and fully enclosed structures to meet different application needs;

· Ultra-low dew point control: The dehumidifier can stably output dry air with a dew point of -40°C or lower, and supports real-time parameter monitoring to ensure a constant dew point; the dry air flow can reach up to 4,000 cubic meters per hour;

· Precise intelligent control: Equipped with a P.I.D. temperature control system for high-precision temperature regulation; optional PLC LCD touch human-machine interface for intuitive operation and convenient monitoring;

· Energy-saving and environmentally friendly design: Large dehumidification and drying units can be equipped with an air heat exchanger to achieve energy recycling, with an overall energy-saving rate of up to 20%.

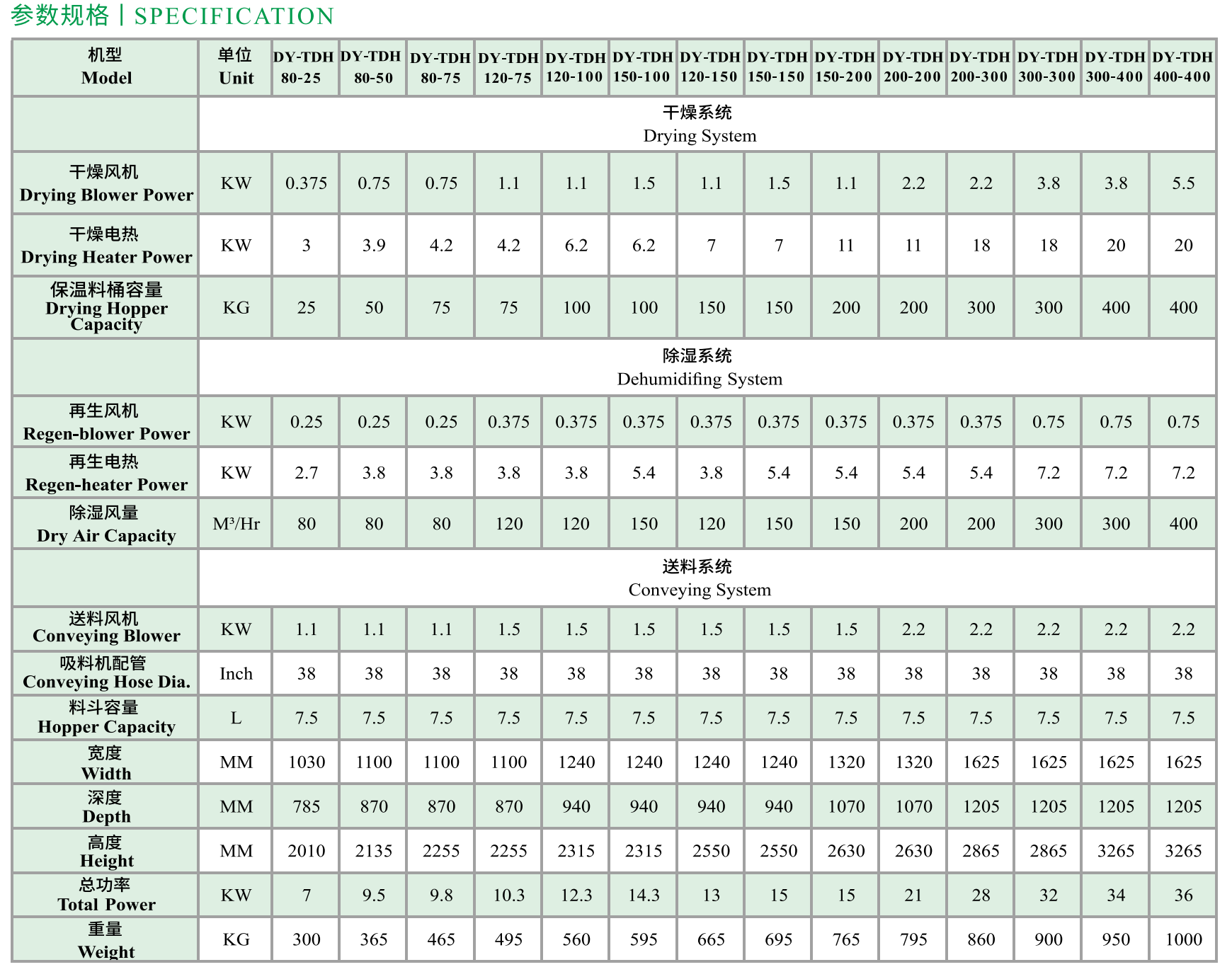

Specifications (Customizable)
