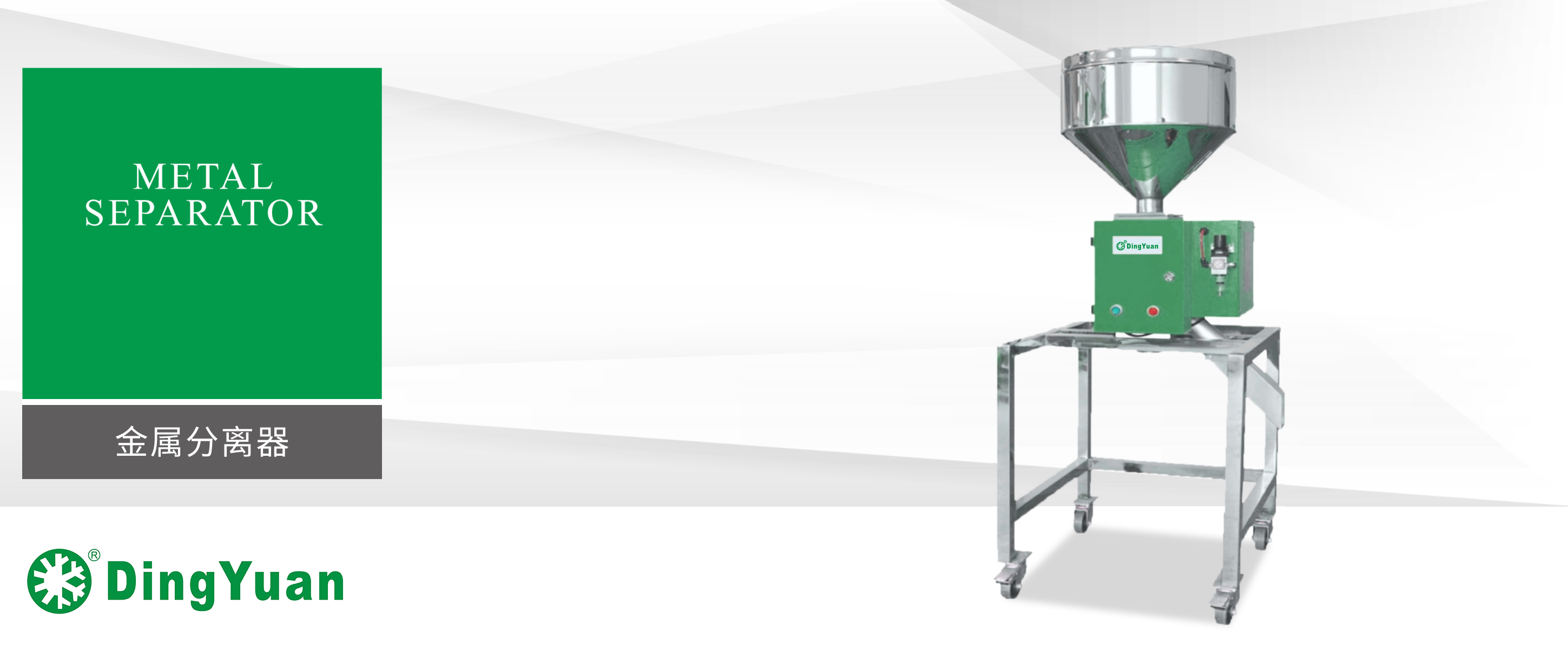

Metal Separator

The DY-TMS series metal separators have high detection sensitivity and can quickly and accurately separate various metals contained in raw materials, such as stainless steel, iron, copper, aluminum, and tin. The principle is that when metal impurities pass through the metal detector of the electronic device, the electronic sensor can send a signal to activate the valve, removing raw materials that contain metal impurities. It uses a pneumatic discharge system, which is compact and precise in discharge. It can be directly installed on the hopper of injection (extrusion) machines, better protecting the screw from damage by metal impurities. This series comes in four models, with a processing capacity of 400kg/hr to 4000kg/hr, meeting customer needs.
Model:
Quantity:

Product Description


Characteristics

· Efficient Separation: Can quickly and effectively separate various metal impurities mixed in plastic raw materials, ensuring production safety.

· High-Precision Detection: High detection sensitivity, capable of identifying metal particles as small as 0.4mm in diameter, ensuring product quality.

· Compact Structure: Small equipment size, flexible installation, minimal space occupation, and easy operation.

· Easy Installation: Can be directly installed on the hoppers of injection molding or extrusion machines, preventing metal from entering the equipment and causing damage.

· Customization Supported: Hoppers and stands can be flexibly customized according to user needs to meet applications in different production environments.

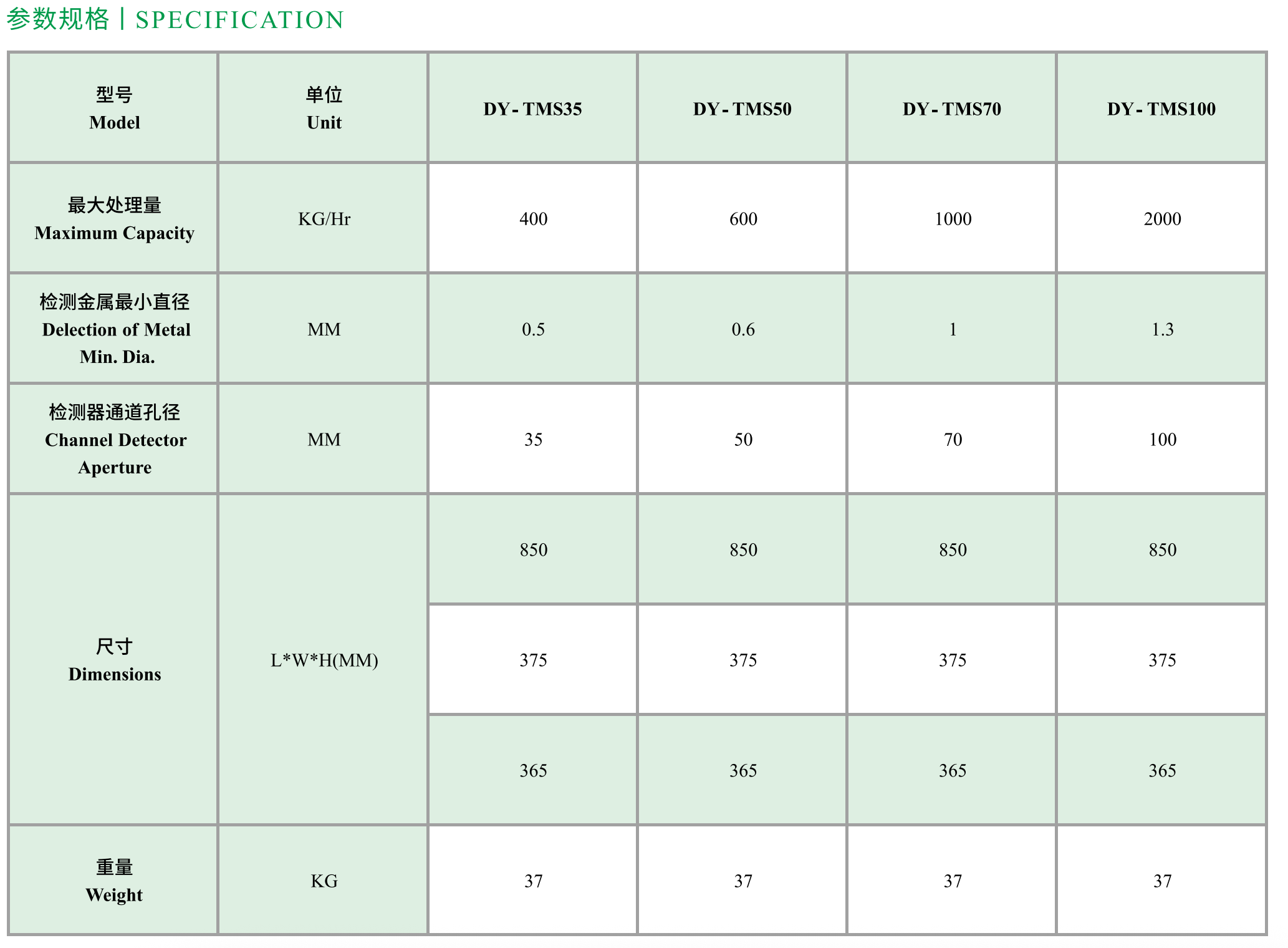

Specifications (Customizable)
