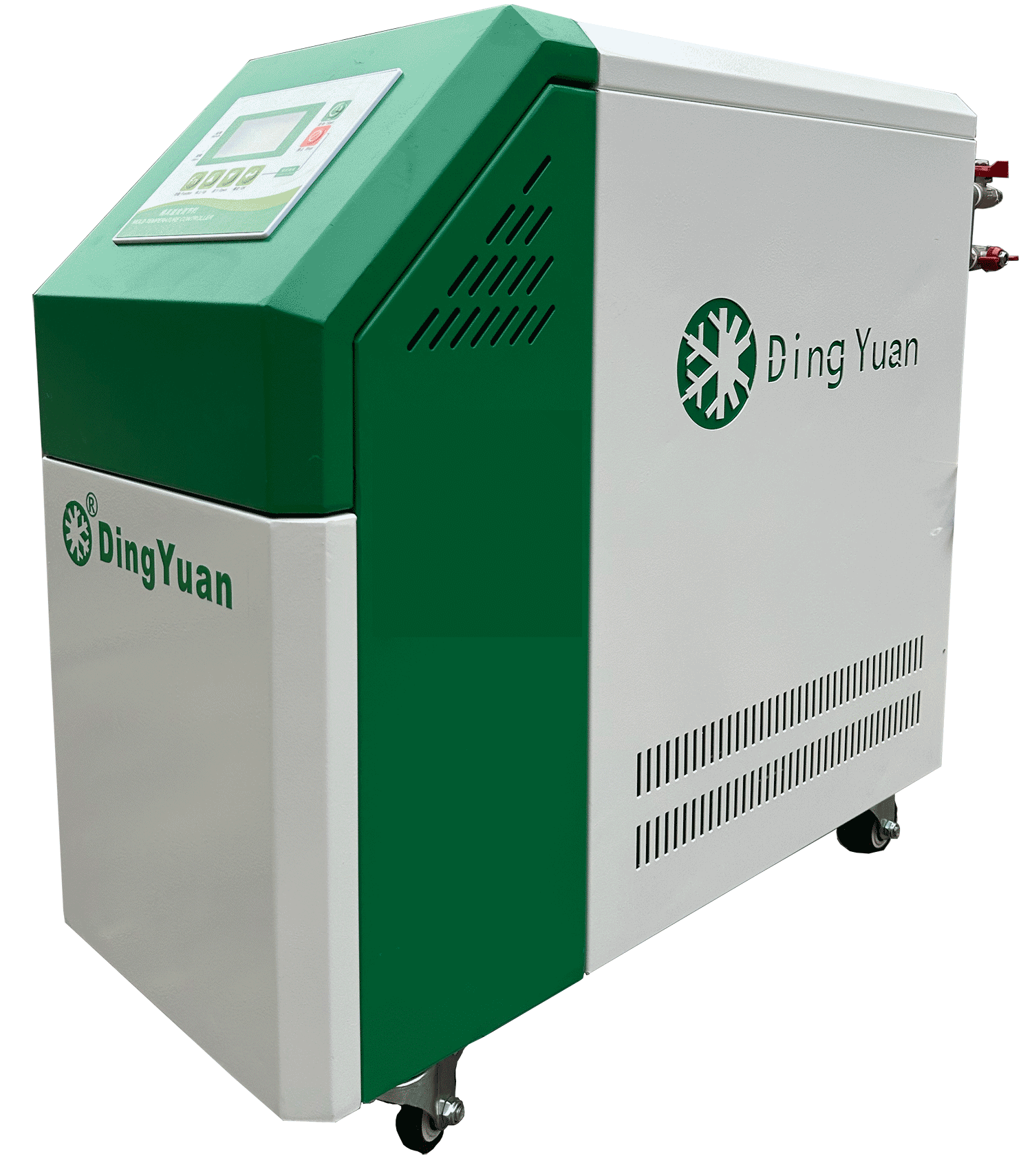

Water Type Molding Temperature Controller

A water-type mold temperature controller is a temperature control device that uses water as the heat transfer medium. It is widely used in industries such as injection molding, extrusion, die-casting, chemical, and rubber. By heating or cooling circulating water, it provides constant and precise temperature control for molds or production equipment. Compared to oil-type mold temperature controllers, water-type ones heat up faster, have higher heat transfer efficiency, are environmentally friendly and pollution-free, and have lower operating costs.
Model:
Quantity:

Product Description

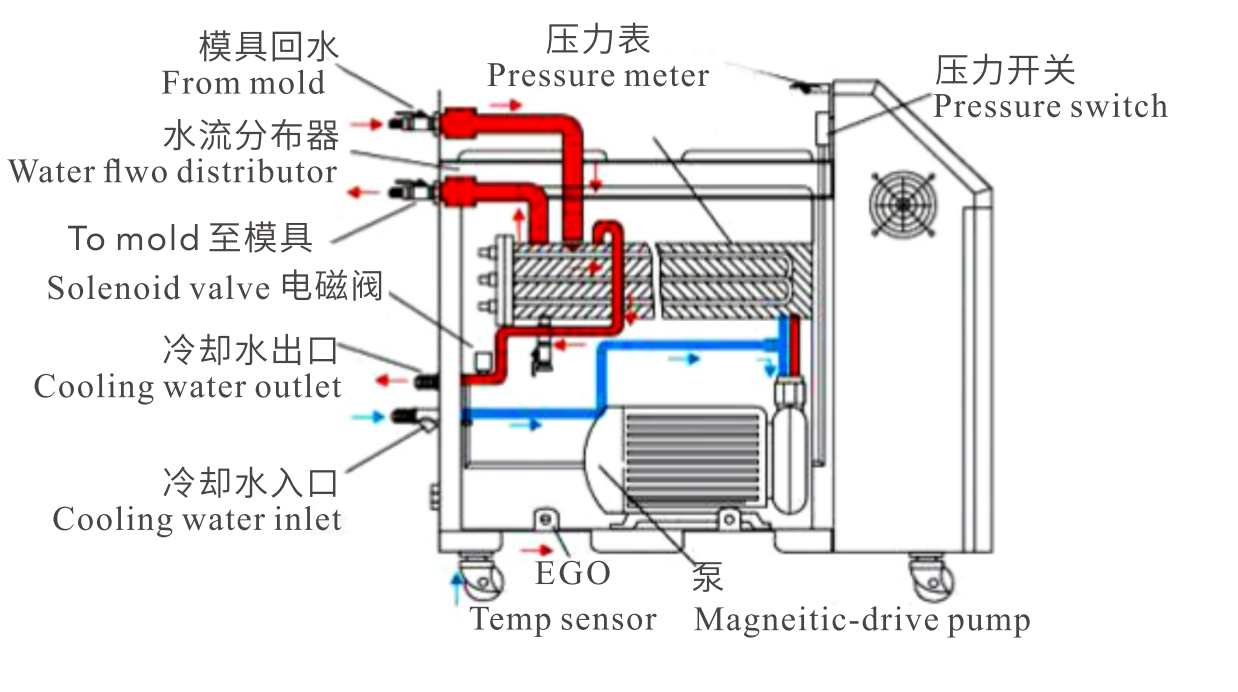

Work Diagram:



Characteristics

· Precise PID Temperature Control: Utilizes a P.I.D. temperature control system, with temperature deviations controlled within ±0.1℃, offering long constant temperature duration, high efficiency, and energy saving.

· LCD Display: Clearly shows actual temperature and set temperature, making operation simpler.

· Convenient Operation and Maintenance: User-friendly interface and low maintenance costs.

· Compact Appearance: Attractive design, small footprint, suitable for various production environments.

· Multiple Safety Protections:

1. Automatic exhaust on startup
2. Automatic cooling on shutdown
3. Thermocouple disconnection alarm
4. Power phase loss and phase sequence protection
5. Water pump protection and low water level protection
6. Overheat protection and overload protection

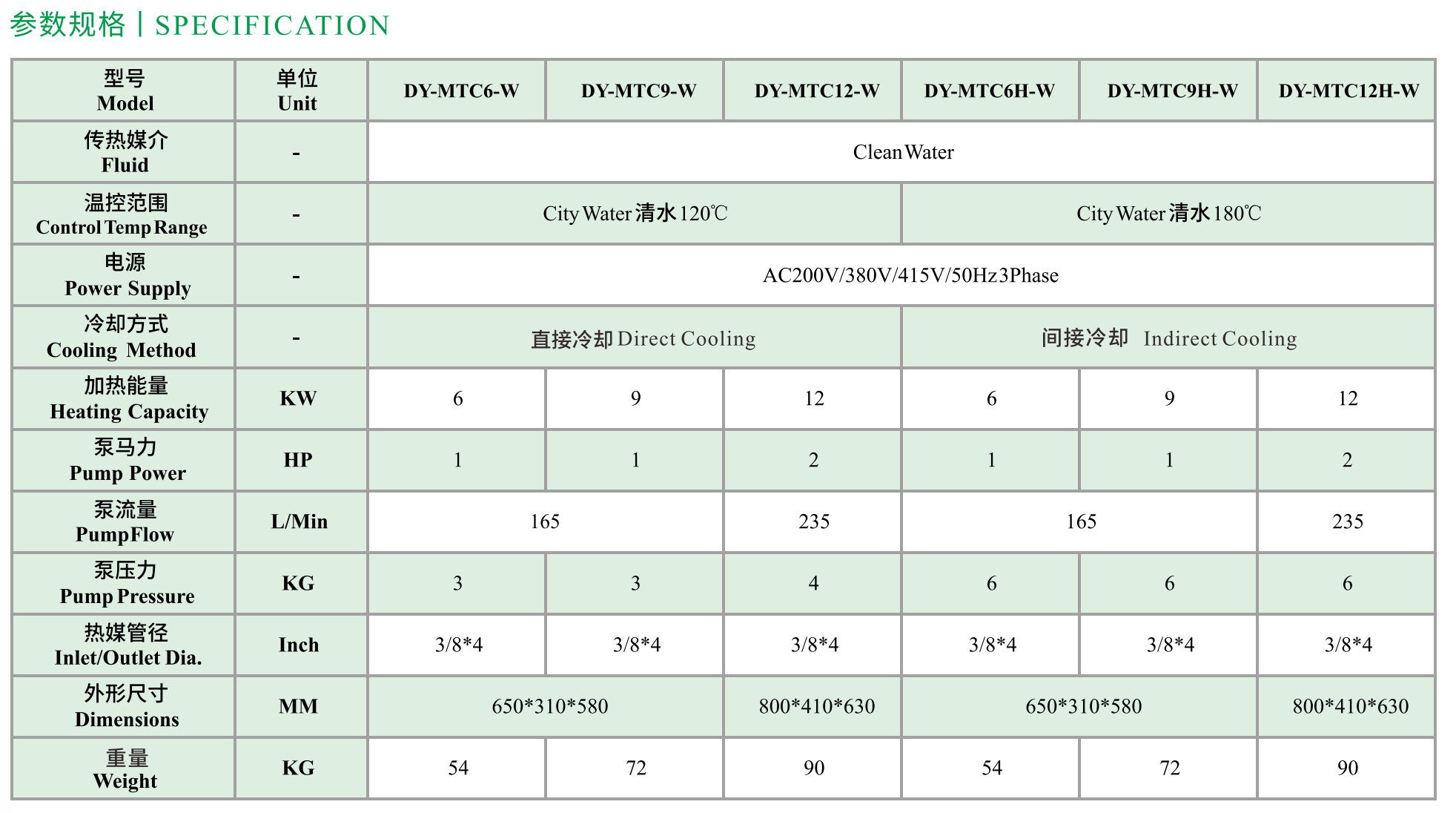

Specifications (Customizable)
