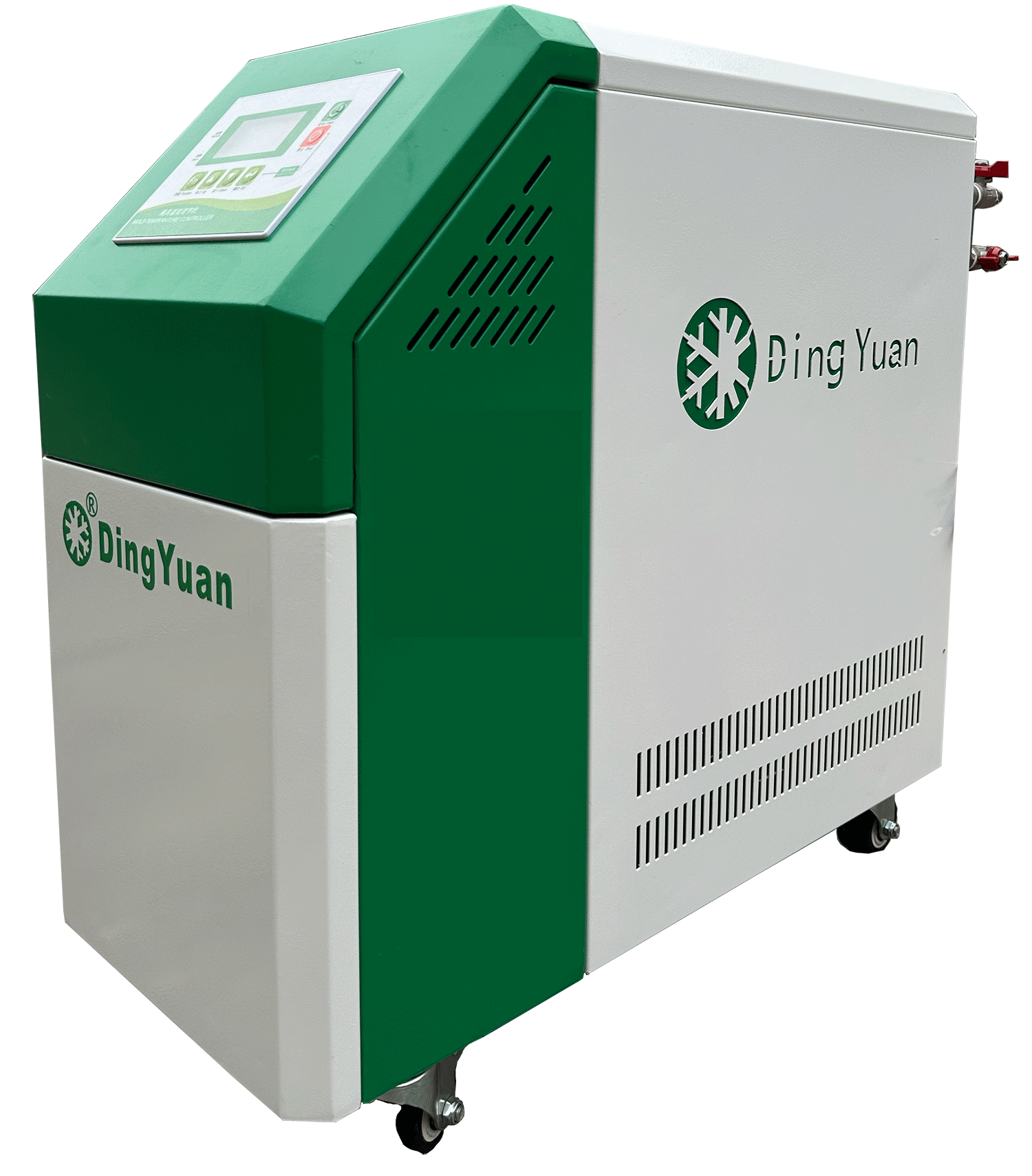

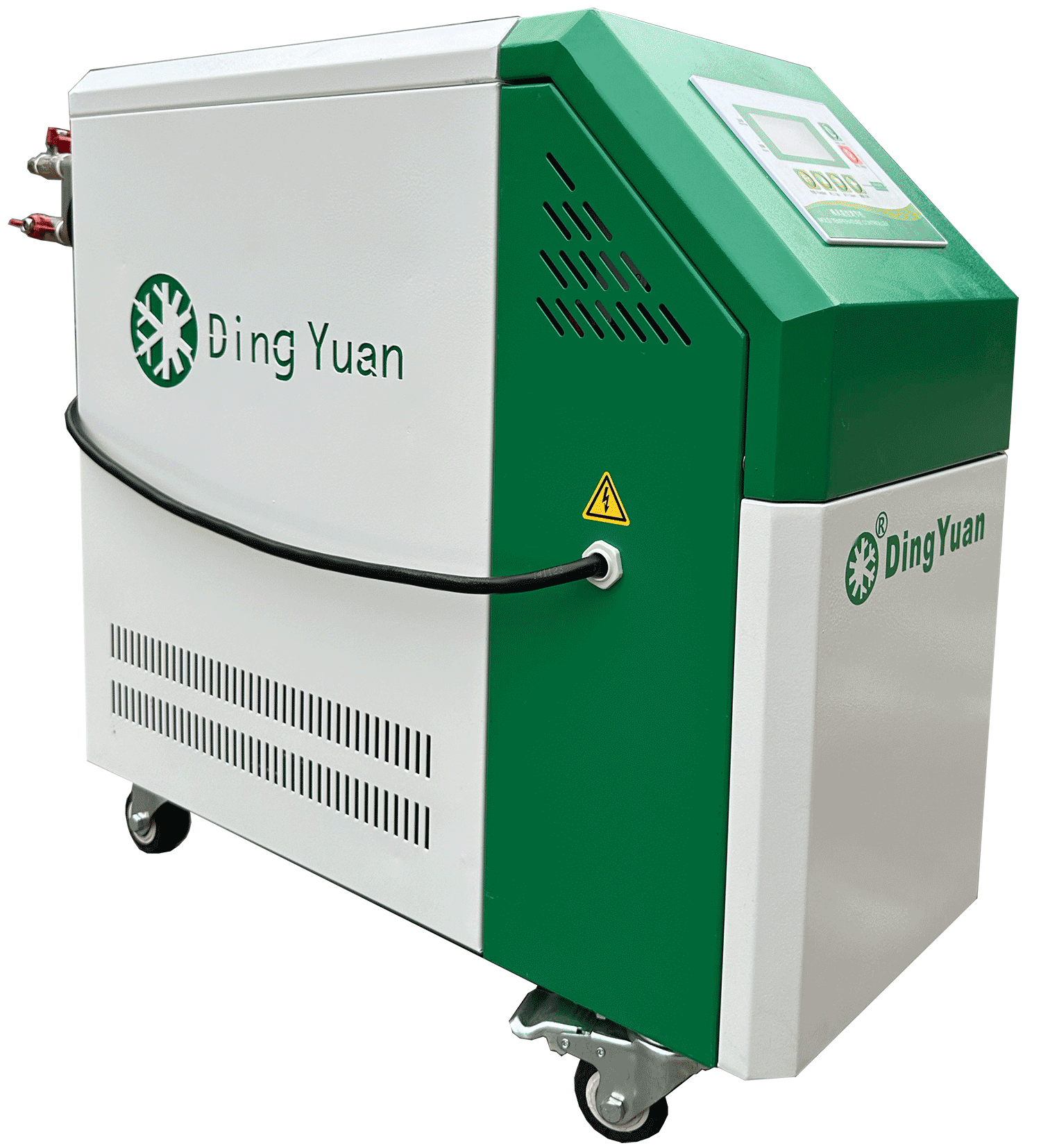

Oil Temperature Controller

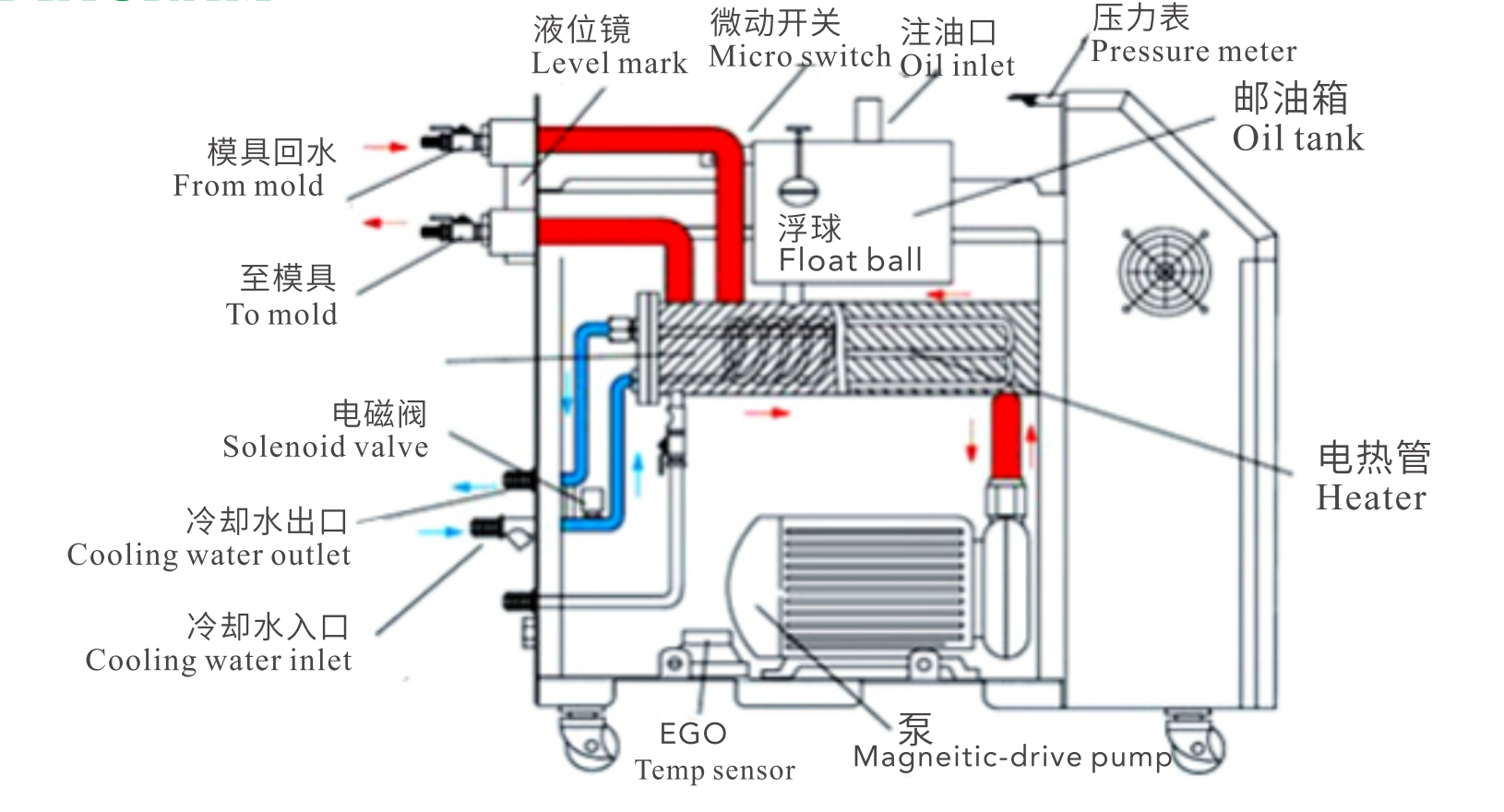

An oil-based mold temperature machine is a temperature control device that uses heat-conducting oil as the heat transfer medium. It is commonly used in industries such as plastics, die casting, rubber, chemical, extrusion, and composite materials. Compared with water-based mold temperature machines, oil-based ones can achieve a higher temperature range, typically reaching 200℃ to 350℃, making them very suitable for processes that require high temperatures.
Model:
Quantity:

Product Description


Characteristics

· Precise PID Temperature Control: Uses P.I.D control, allowing temperature error to be controlled within ±0.1℃, maintaining long-lasting temperature stability, high efficiency, and energy saving.

· LCD Display: Can directly show the actual temperature and set temperature, clear and intuitive.

· Easy Operation: User-friendly interface, easy to learn and operate, convenient maintenance.

· Stainless Steel Construction: The tank is made of stainless steel, corrosion-resistant, leak-proof (water/oil), and has a long service life.

· Oil Return Function: Daily oil return design enables quick heat transfer oil recovery, convenient and efficient.

· Compact Appearance: Attractive design, takes up little space.

· Multiple Protection Functions: Six major safety protections, including:

1. Automatic exhaust on startup
2. Automatic cooling on shutdown
3. Thermocouple disconnection alarm
4. Phase loss and incorrect phase sequence protection
5. Water pump protection and overheat protection
6. Oil shortage protection

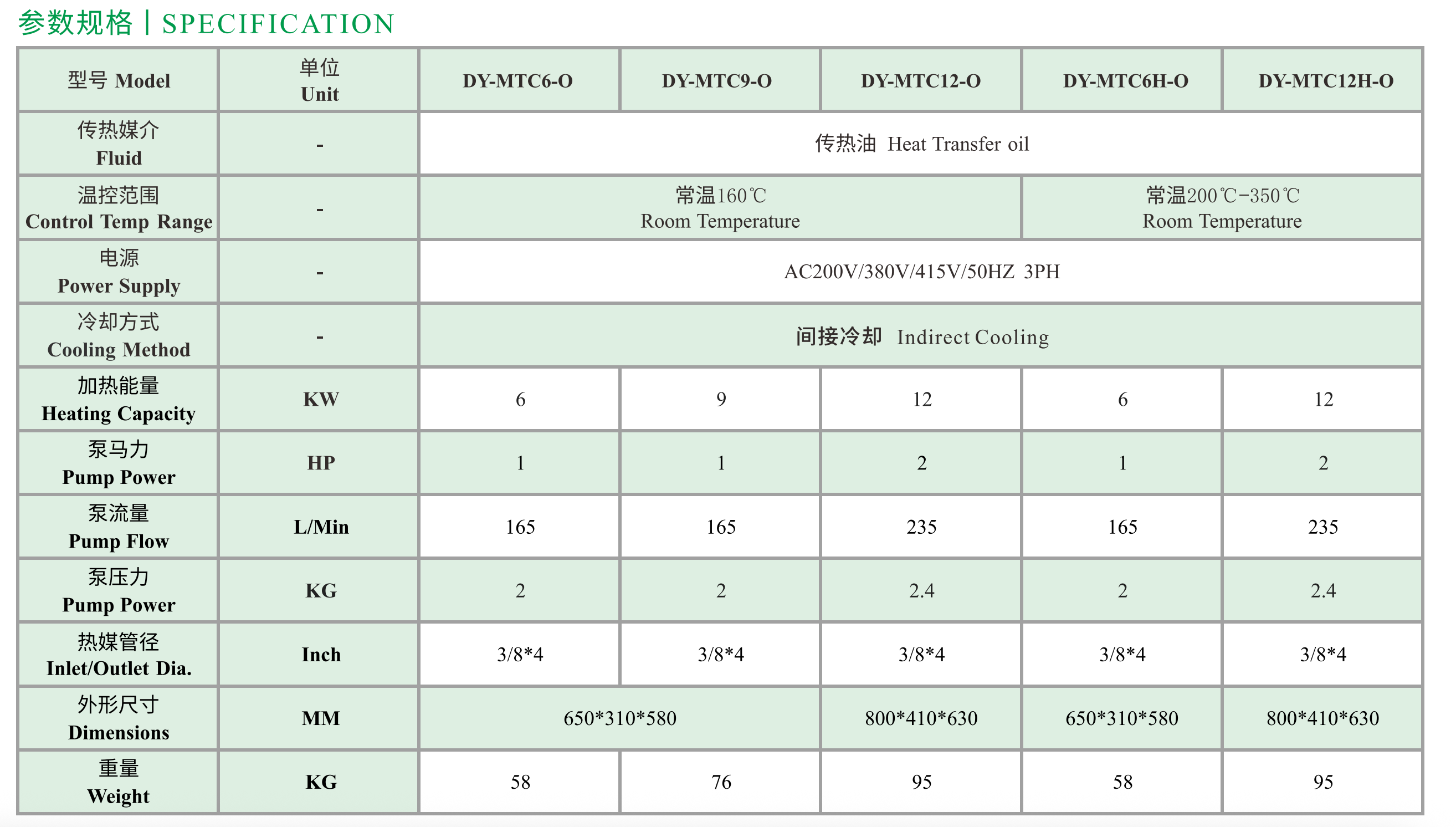

Specifications (Customizable)
