Water-Cooled Chiller

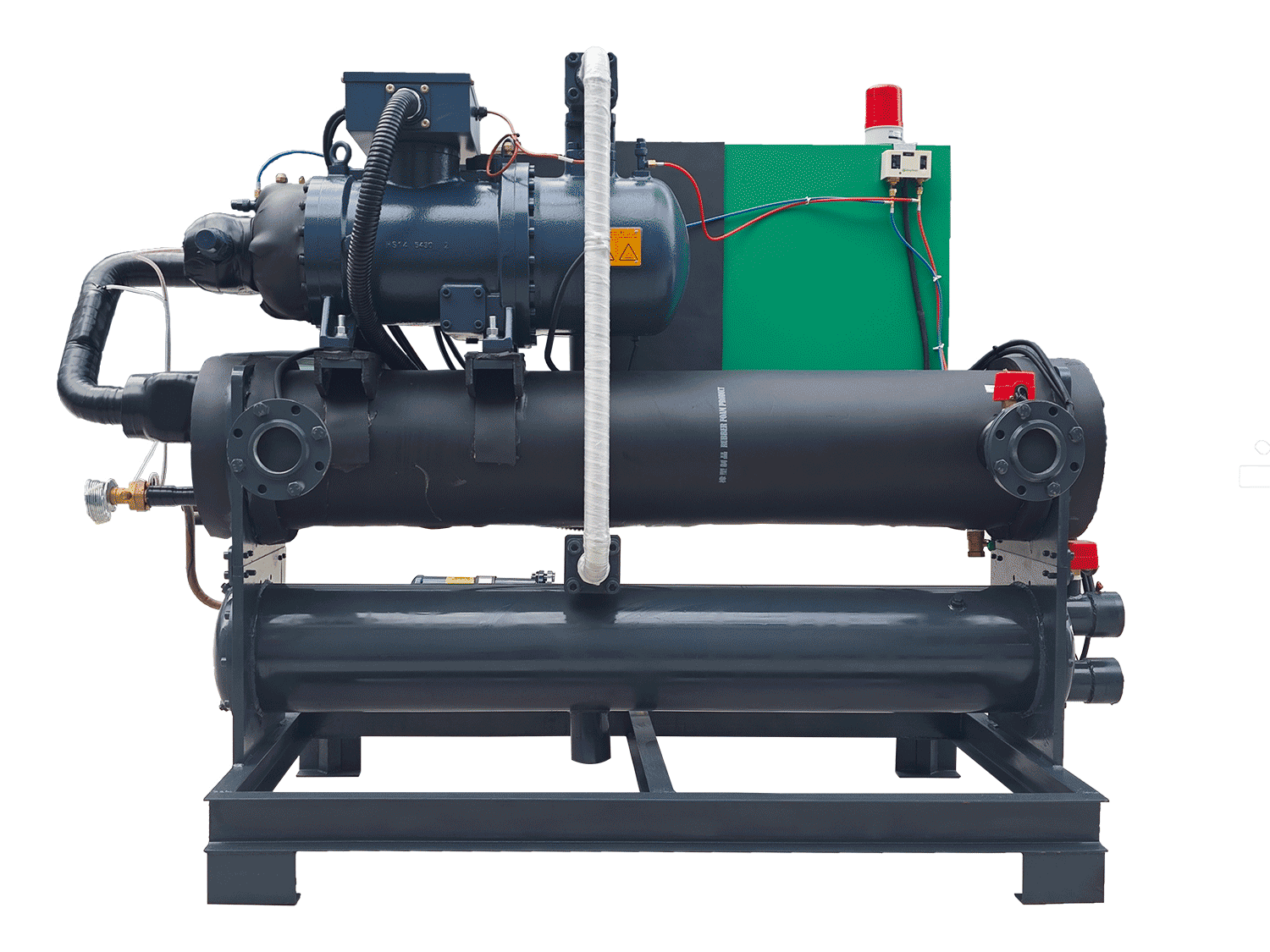

Water-Cooled Chiller

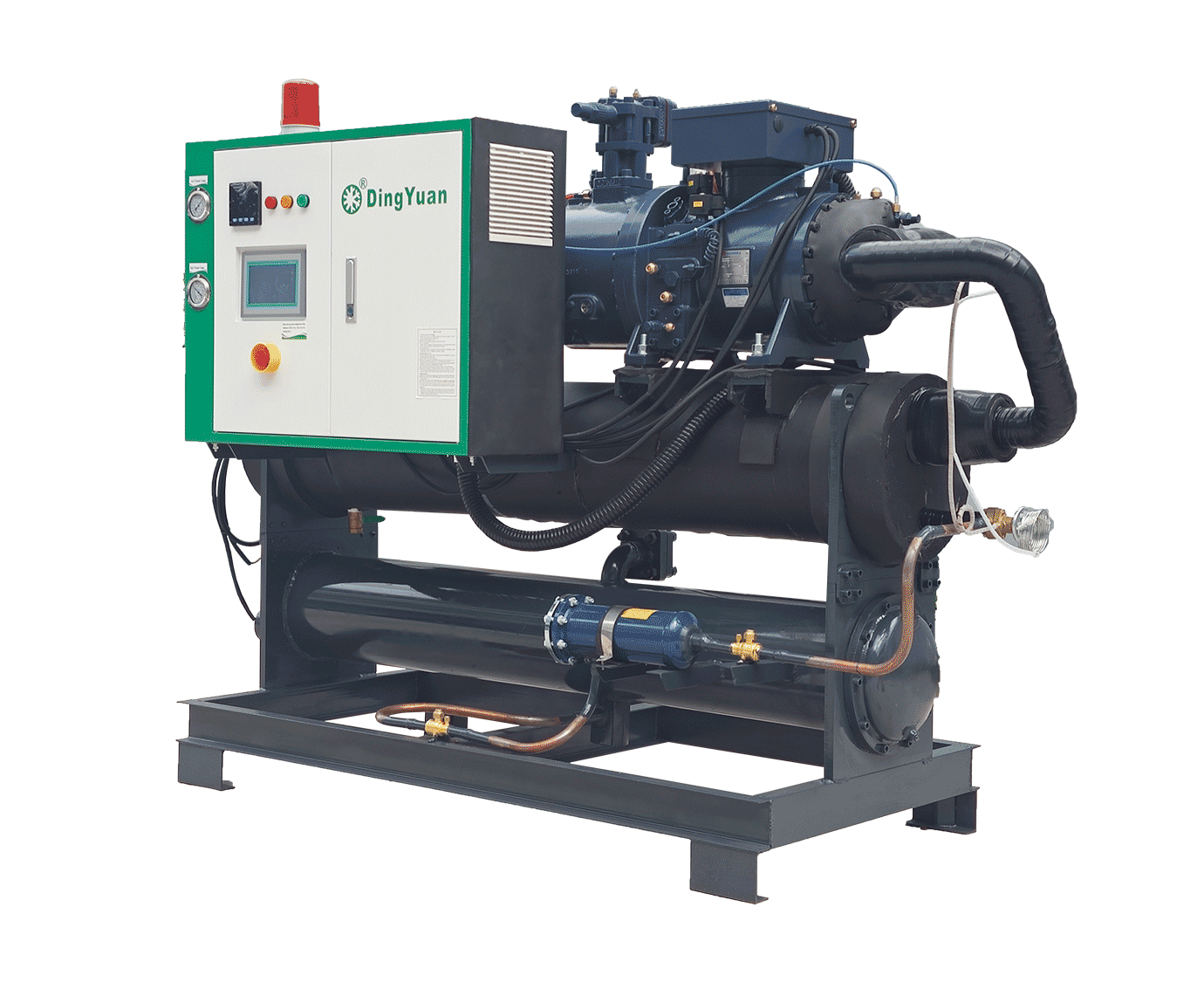

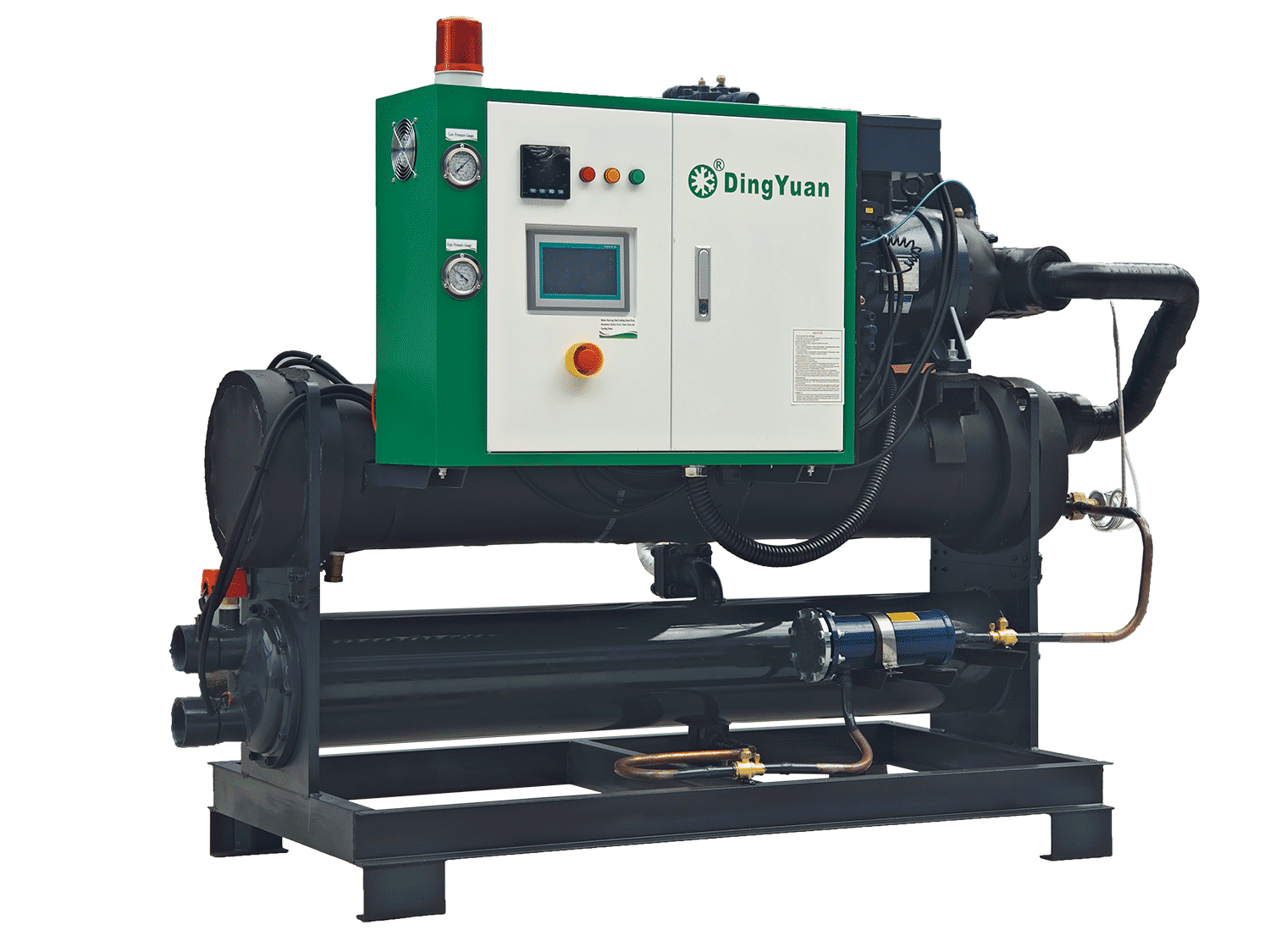

The DY-FSO series industrial screw chillers use high-efficiency semi-hermetic screw compressors, combined with high-quality evaporators and condensers, providing strong and stable cooling performance, suitable for various large-scale cooling demands. This series of products is commonly used as the main unit of central air conditioning systems and is also widely applied in various residential and industrial scenarios, meeting the stringent requirements for efficient cooling in different application environments.
· Residential applications: commercial buildings, entertainment centers, hotels, hospitals, theaters, sports arenas, large shopping malls, etc.
· Industrial applications: plastics and rubber, pharmaceuticals, textiles, chemicals, food, electronics manufacturing, and other industries
Product Features:
· Energy efficiency meets the national first-level standard, saving energy and being environmentally friendly
· Can operate stably at ambient temperatures up to 43℃, safe and reliable
· Uses a PLC control system for convenient operation, with a temperature control range of 3~50℃ and control accuracy up to ±0.1℃
· Equipped with internationally renowned semi-hermetic screw compressors to ensure long-term, efficient, and stable operation of the equipment
· High EER/COP values, more energy-efficient compared to traditional scroll chillers
· Key electrical and refrigeration components use internationally leading brands, offering superior performance and longer lifespan
· Independently developed high-efficiency condenser and evaporator to ensure strong cooling capacity
· Scientifically and reasonably designed piping system to reduce operating resistance and future maintenance costs
· Intelligent touch screen displays real-time inlet and outlet water temperatures and fault information for easy operation and maintenance
· Equipped with multiple safety protection features to ensure continuous and stable system operation
Industry Application Scope:
Chillers are widely used in various industrial fields such as plastics, electronics manufacturing, electroplating, pharmaceutical and chemical industries, ultrasonic cleaning, and printing. Especially in the plastic molding process, chillers can be used to cool molds, effectively improving the surface finish of products, reducing surface defects and internal stress, preventing shrinkage and deformation, enhancing demolding efficiency, and speeding up the setting process, thereby significantly improving production efficiency and product quality.

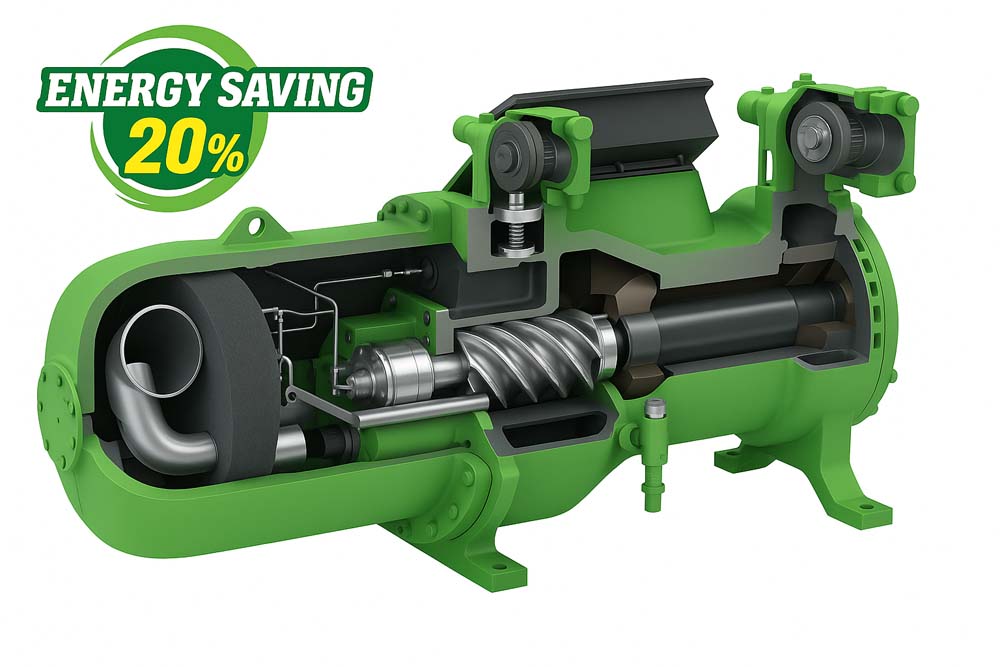

Semi-hermetic screw compressor
Low noise and low vibration, energy saving increased by over 20%
The air-cooled screw chiller uses a semi-hermetic screw compressor, featuring stable operation, low noise, and minimal vibration. During the compression process, gas enters the compression chamber from the suction side, is continuously compressed as the screw rotates, and is discharged from the exhaust side. The screw's structural design ensures smooth and efficient gas flow. The equipment is equipped with internationally renowned brand screw compressors such as Bitzer or Hanbell, ensuring long-term efficient and reliable operation. Compared to traditional scroll compressors, the overall energy-saving effect is increased by more than 20%, significantly reducing energy consumption.

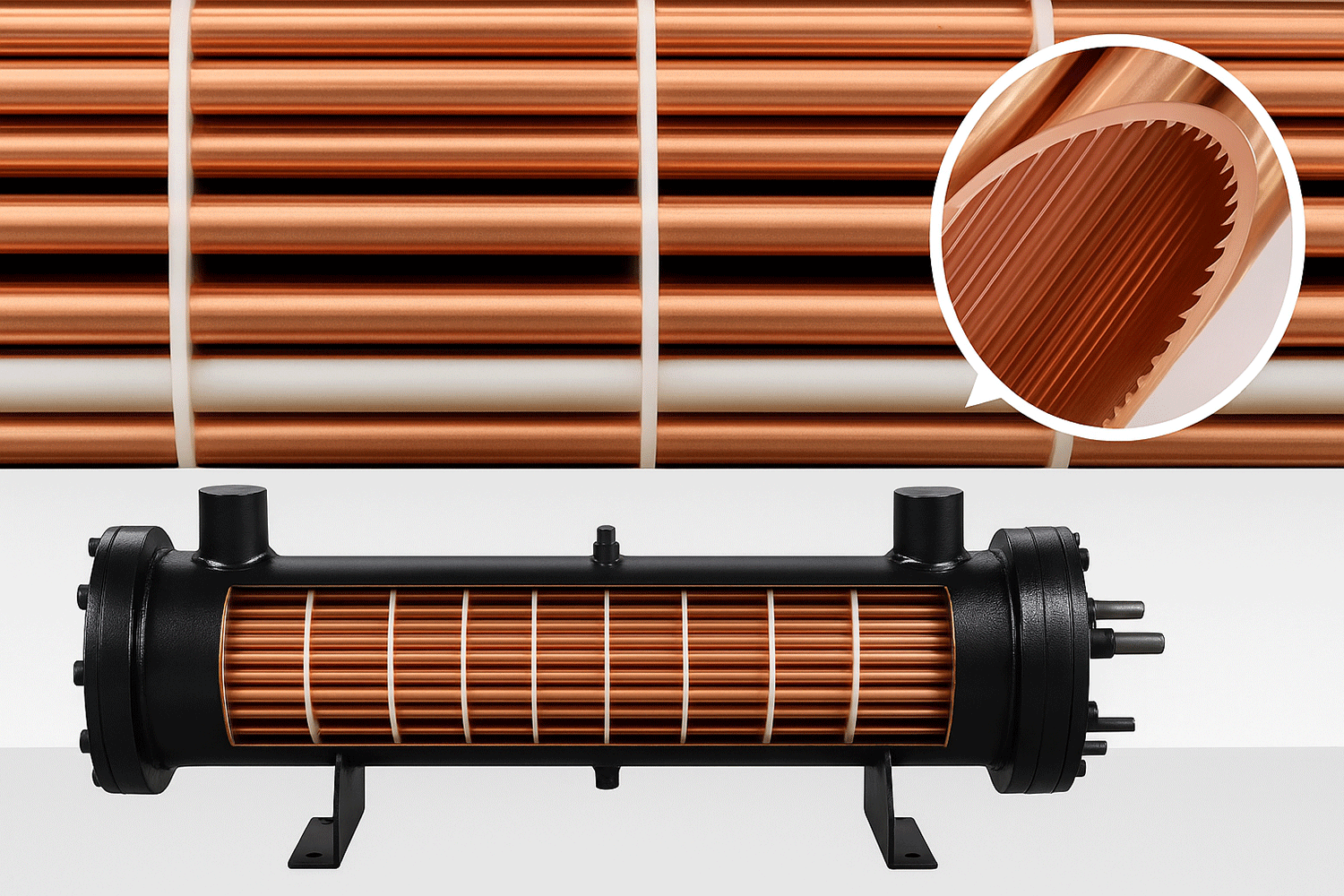

Shell and tube evaporator
The air-cooled chiller uses a high-efficiency shell-and-tube evaporator, where the refrigerant evaporates inside the heat exchange copper tubes, while water flows outside the shell. To enhance heat exchange efficiency, we added an approximately 2mm thick baffle inside the shell, causing the cooling water to flow back and forth, thereby improving heat transfer efficiency and achieving the effect of producing ice-brine water.
The exterior of the shell is wrapped with high-performance insulation cotton to reduce energy loss and ensure stable system operation and constant temperature.
The evaporator uses high-efficiency seamless copper heat exchange tubes. The copper tubes are processed with precise "jade flower" craftsmanship, forming a threaded rib structure on the inner wall, which significantly increases the heat exchange area between the refrigerant and the copper tubes. Compared with traditional smooth tubes, this structure more than doubles the heat exchange area, greatly enhancing overall heat transfer efficiency and refrigeration performance.
