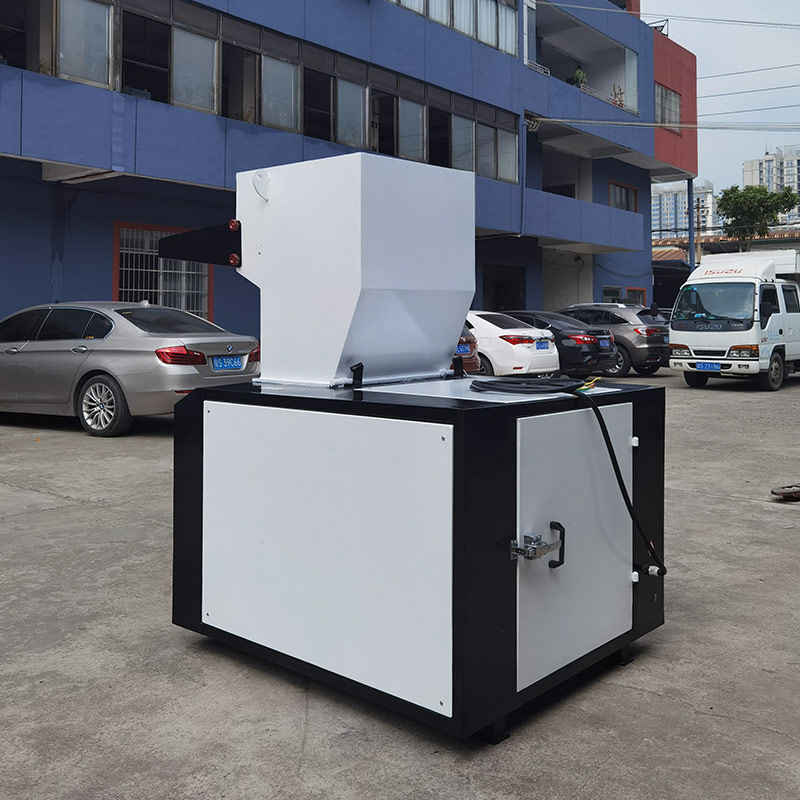

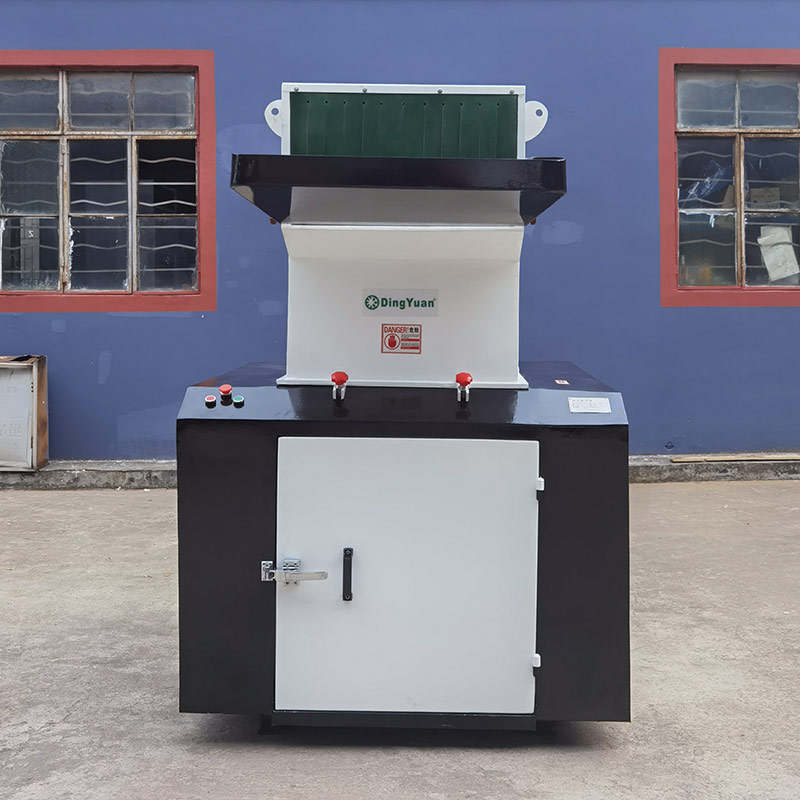

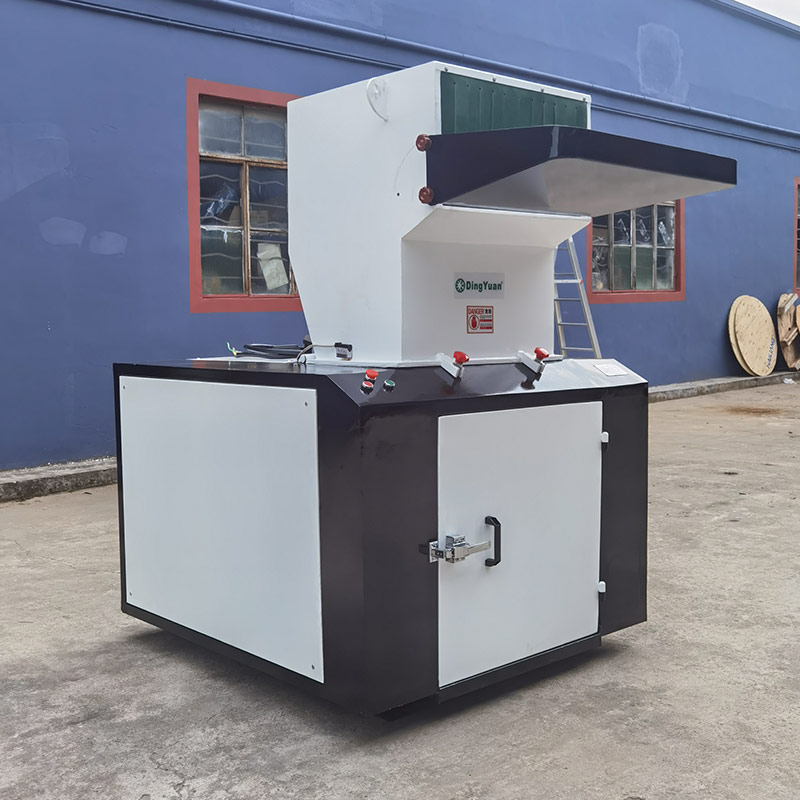

SOUNDPROOF CRUSHER

Description

Soundproof crushers are specially designed for centralized low noise crushing various rigid plastics to recycle with high-efficiency. Superior cutter design has 3 types - flake, flat and claw type. Claw cutter has the characteristics of scattering force even to make each blade giving strong shearing force to reduce cutter wearable, especially are suitable for hard & thick products cutting. The crushers are specially designed with multiple electricity safety devices to ensure safety protection

Models: DY-SP5.5

Optimized with full-closed soundproof structure, ensuring the low noise level under operation.
Equipped with current relay, motor overload protector and other safety devices, to ensure safe operation.
The cutters are made of SKD-11 featuring wear ability and high rigidity.
Optional part: Sifting device. It can effectively separate the powder and dust and reduce the pollution of recycled materials.
Machines from 30HP are applied with chamber cooling. It can help reduce the heat caused by friction and avoid material blocking.
Machines from 30Hp are applied with cylinder for the hopper and screen holder.
All machine are applied with level pad which can reduce the vibration when operating.

型号 Model		DY-SP5.5
电机功率 Motor Power	KW/HP	2.2/3
爪刀 Claw Blade	定刀 Stationary Cutter	2
爪刀 Claw Blade	动刀 Rotary Cutter	9
片刀 Slice Blade	定刀 Stationary Cutter	2
片刀 Slice Blade	动刀 Rotary Cutter	3
粉碎能力 Crushing capacity	Kg/hr	100
筛网尺寸 Mesh Size	MM	6
粉碎口径 Crushing Chamber	MM	190*160
净重 Net Weight	Kg	150
尺寸 Dimensions	MM	8505001100
